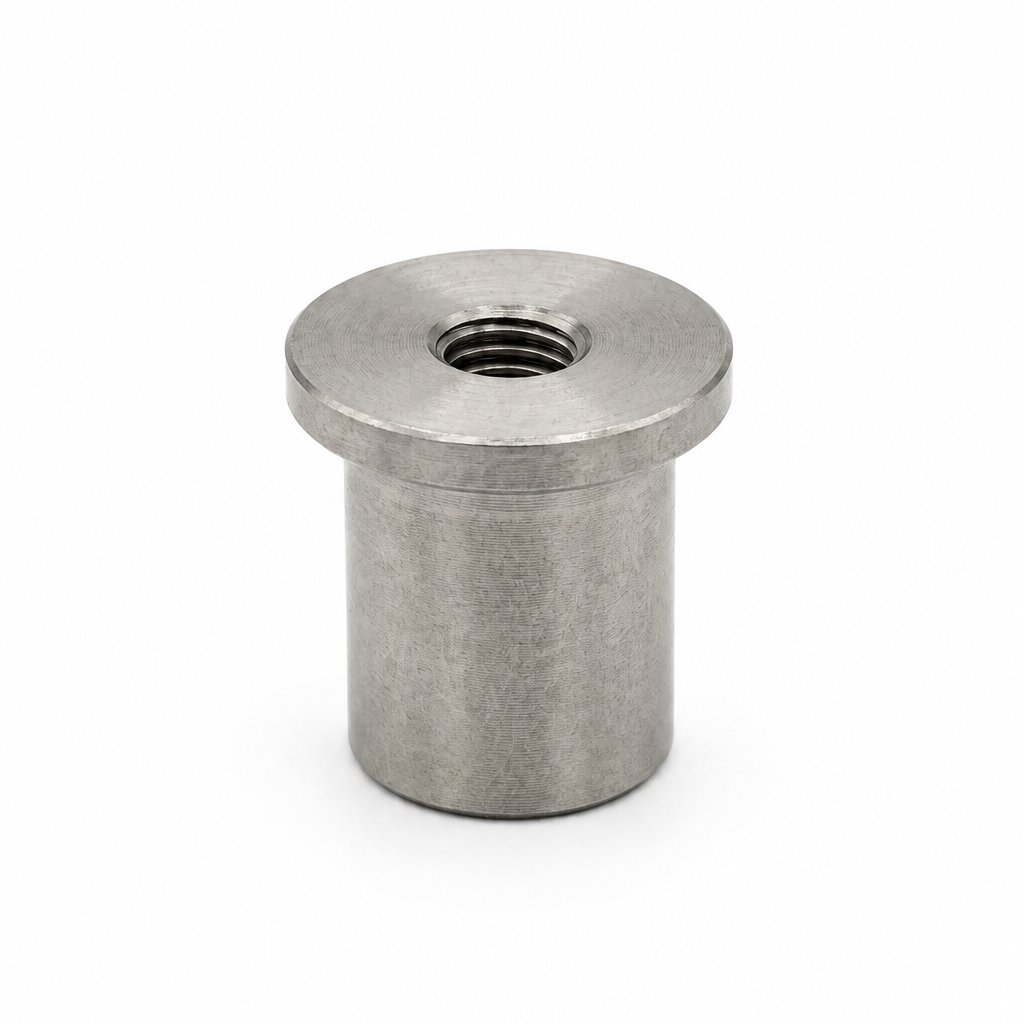

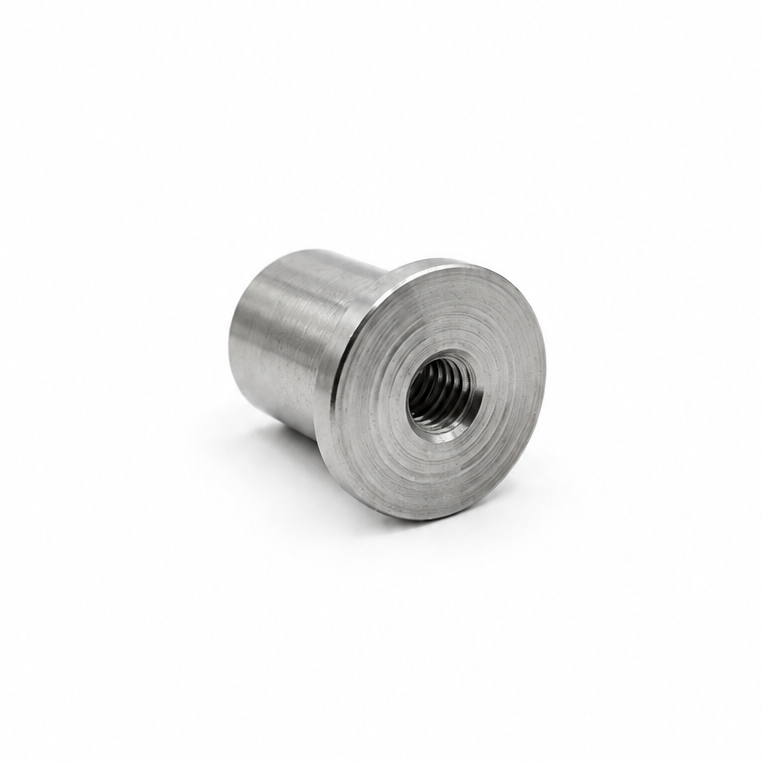

Stop moisture, road debris, and dirt from ruining your threads while adding maximum structural strength. Our 3/4" OD Heavy Duty Top Hat Blind Steel Bungs combine a deep closed-bottom design with a wide 1" flange, completely sealing off frames tubes, fuel tanks, and custom brackets from moisture, rust, and road grime.
Machined with a robust 3/4" (19.05mm) body outer diameter and a 1" (25.40mm) overall length, these bungs feature 1/8" shoulder flange. The generous 1" flange prevent the bung from falling through your mounting tab/ frame, or sheet metal during fit-up while spreading heavy vibration loads over a larger surface area.
- Material: Easy-to-weld Mild Steel (coated with light protective anti-rust film)
- Thread Size: 5/16" UNC (18 TPI)
- Thread Depth: 12mm (~15/32" Full thread)
- Outer Diameter (OD): 3/4" (19.05mm)
- Flange Diameter: 1" (25.40mm)
- Flange Thickness: 1/8" (3.18mm)
- Overall Length: 1" (25.40mm)
- Design: Top hat flange shoulder for low-clearance self-locating alignment
-

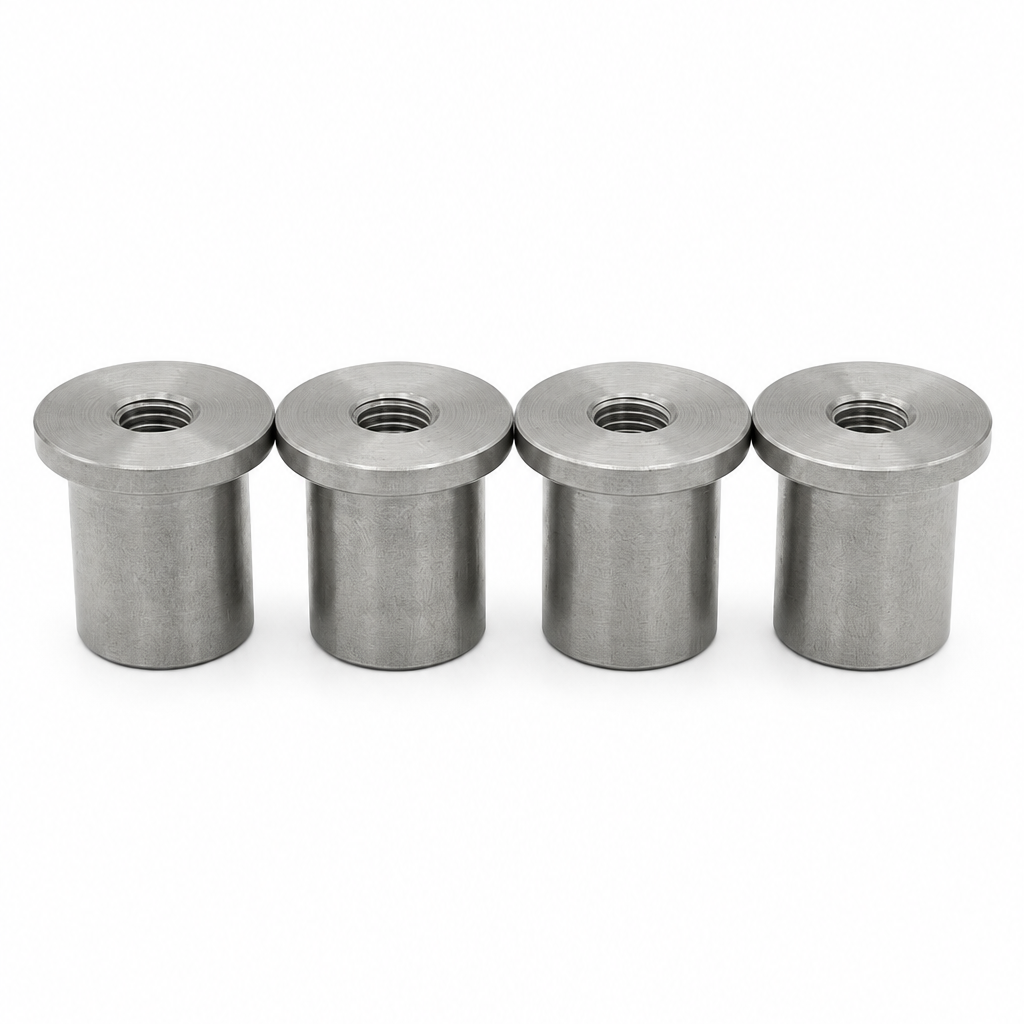

Quantity: Sold as pack of 4
Applications - Compact heavy-duty frame tabs
- Oil tank & Battery box mounts
- Tight-fit exhaust & fender mounting brackets
- Structural custom metal fabrication
