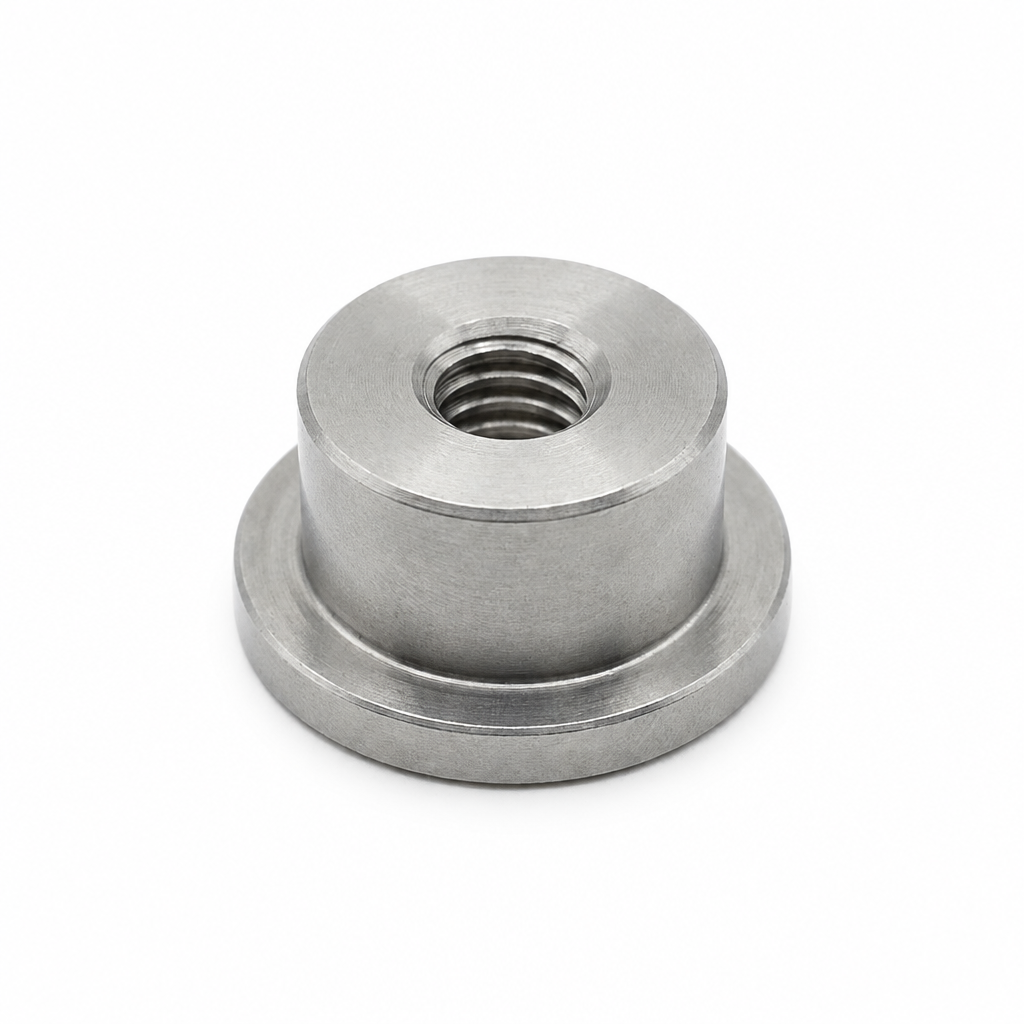

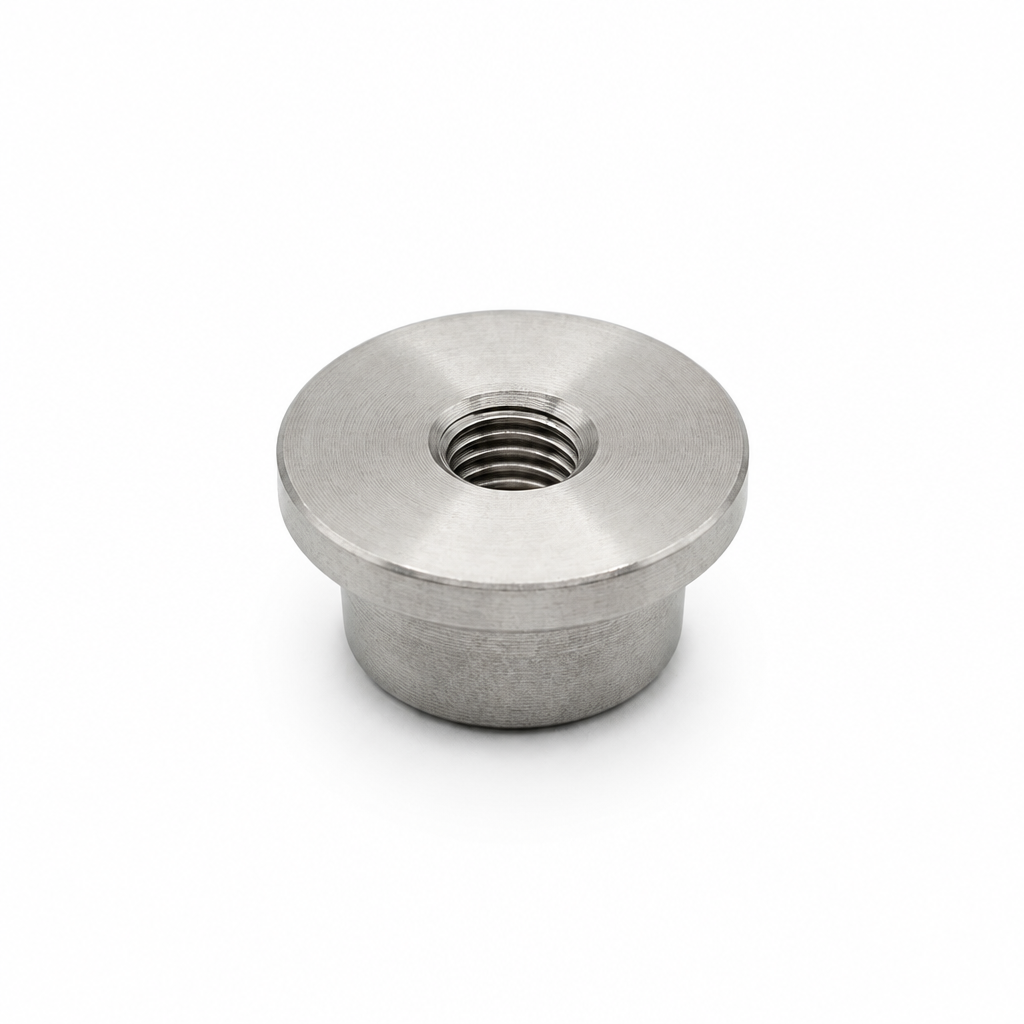

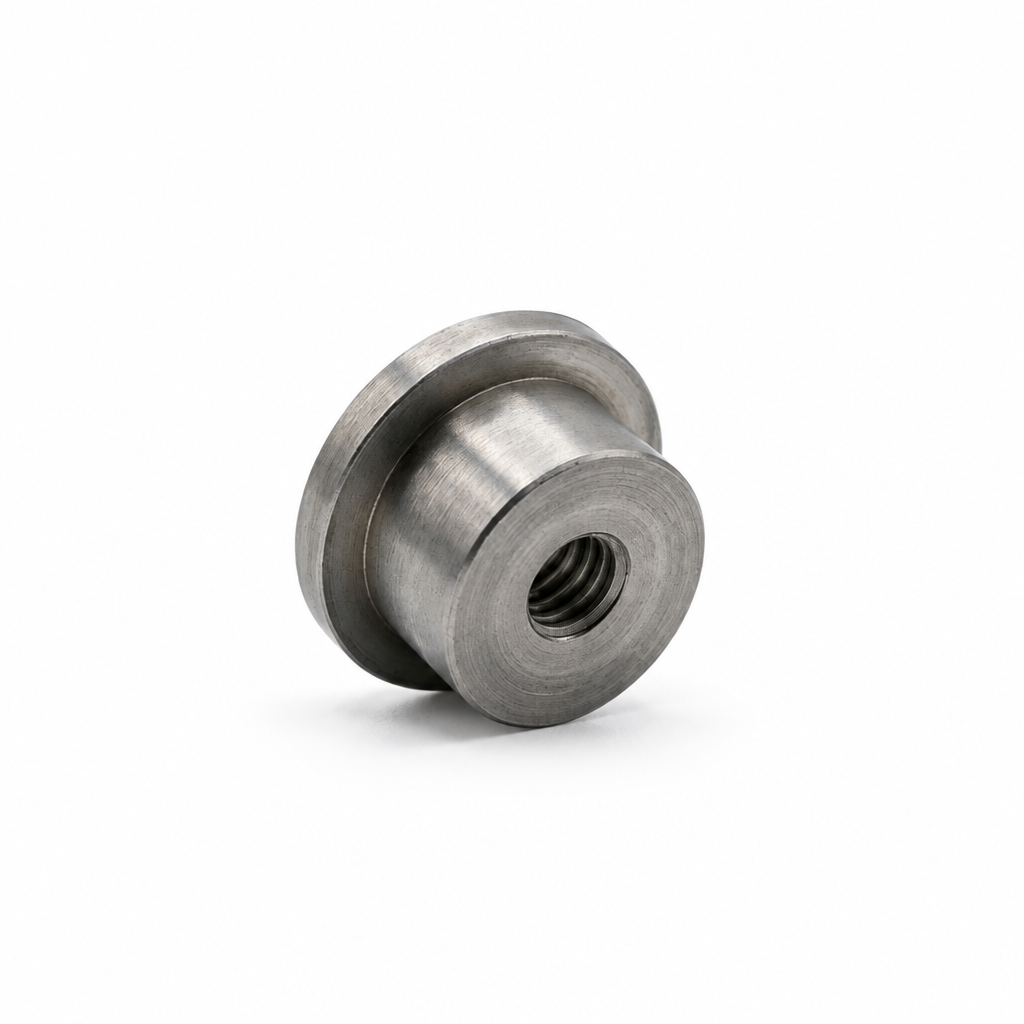

Built to classic imperial dimensions for high-load structural mounting points. Our 3/4" OD x 1/2" Height Top Hat Bungs feature a stepped shoulder flange that sits nicely into 3/4" drilled mounting holes, keeping the bung square and flat against your tab or fram tube while tacking and welding.
Machined with a 3/4" (19.05mm) outer diameter and a 1/2" (12.70mm) overall height, these bungs are fully tapped through with 5/16"-18 UNC threads for maximum bolt engagement from either side.
- Material: Easy-to-weld Mild Steel (coated with light protective anti-rust film)
- Thread Size: 5/16" UNC (18 TPI)
- Thread Depth: 1/2" (12.70mm Full thread)
- Outer Diameter (OD): 3/4" (19.05mm)
- Flange Diameter: 1" (25.40mm)
- Flange Thickness: 1/8" (3.18mm)
- Overall Length: 1/2" (12.70mm)
- Design: Top hat flange shoulder for low-clearance self-locating alignment
-

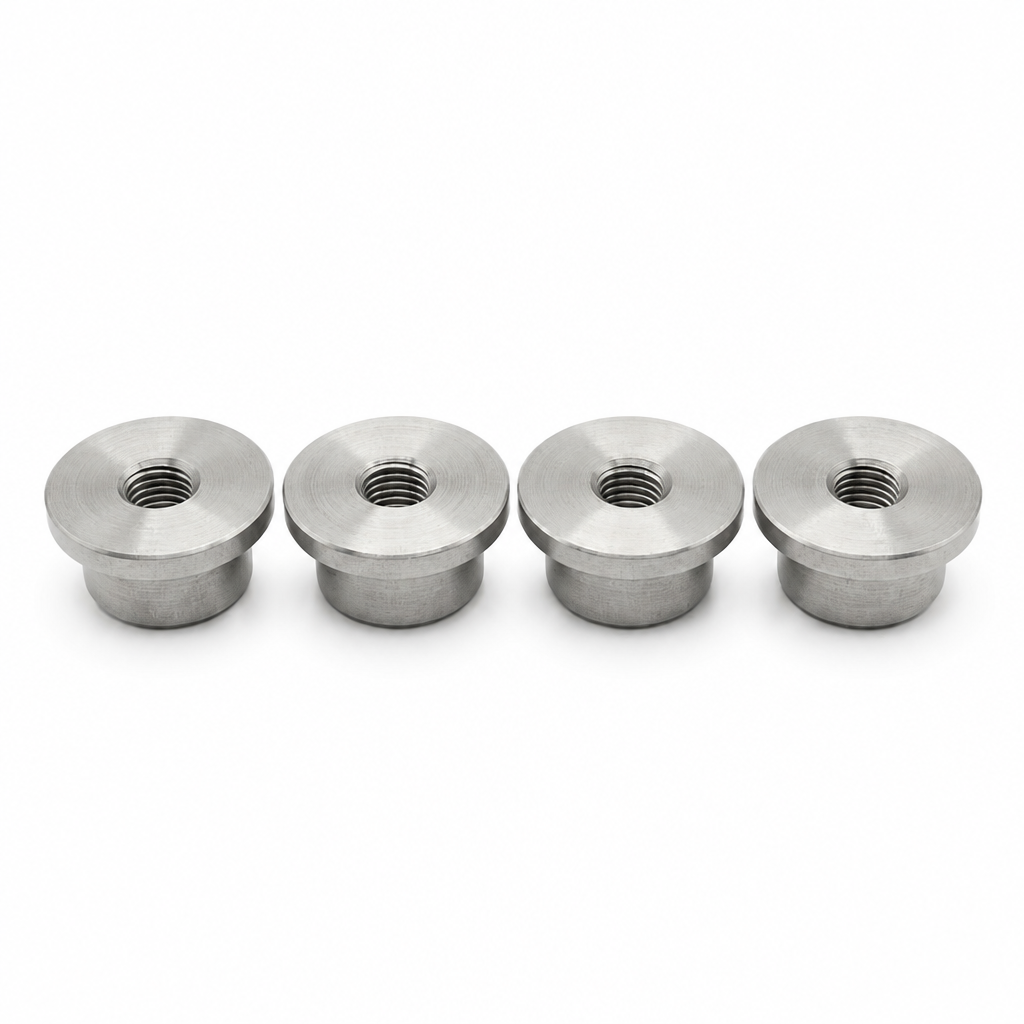

Quantity: Sold as pack of 4
Applications - Compact heavy-duty frame tabs
- Oil tank & Battery box mounts
- Tight-fit exhaust & fender mounting brackets
- Structural custom metal fabrication
